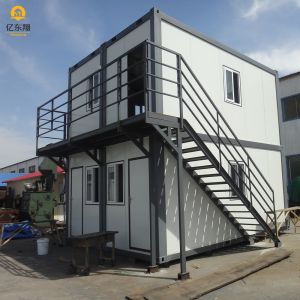

Prefab Container House Q355 Q235 Steel Frame Sandwich Panel

Brand Name : YDX

Model Number : YDX-00

Certification : CE ISO SGS

MOQ : 500-10000 square meters

Price : $35.00-$65.00

Payment Terms : T/T

Supply Ability : 10000 tons/month

Delivery Time : 20-30 works days

Packaging Details : Exported standard packing

Place of Origin : CHINA,QINGDAO

Keyword : Mobile Living Container House

Wall : 50mm/75mm Sandwich Panel

Structure : Steel frame

Color : Optional

Function : Rotproof Waterproof Fireproof

Hvac System : Air conditioner/Heater

Storey : Two layer

Main Frame : Q355 Q235

Window： : Aluminum Alloy window

Door： : Sliding Door, Rolling Door

Wall & Roof : Sandwich Panel; Color Steel Sheet

Secondary Structure： : Purlin; Brace, Knee Brace Etc

Cladding : PU/Rock Wool/Fiberglass/EPS

Column & BeamConnection : High Strength Bolt

Contact Now

Assemble prefabricted container module house for residential

Product Description

1. Container house brief introduction
You can get our container house with a variety of steel structural combination schemes. We are familiar with the overall needs of customers, our team can always find the best solution for customers. Our products have flexible design and easier assembling methods, suitable for different countries and regions of the project needs. Please visit details to learn more information

2. Container house characteristics
1) Good ability to assemble and disassemble for several times without damage.
2) Could be lifted, fixed and combined freely.
3) Heatproof and waterproof.
4) Cost saving and convenient transportation (Each 4 container house can be loaded in one standard container)
5) Service life can reach up to 10 - 15 years
6) We can provide the service of installation, supervision and training by extra.

3. Container house usage
It is of heatproof and waterproof. It is widely used as site office, site living room, meeting room, dormitory, shop, toilet, storage,
kitchen, shower room and so on. Light material without overload, easy to pack and transport. The house can be assembled and
disassembled more than 6 times, and the service life is about 10-15 years.
4. Container house main structure and installation
Flat Pack Container is 6m*3m*2.89m, with EPS/IEPS/Rock wool sandwich panel for wall & Glass wool for roof! 6
workers can install 1 unit in 2 hours! Can stack up to 3 floors! Electric wires runs over ceiling, including DB, breaker, power
inlet & lights. Sockets & Switch included. Total-sealed-top & corner-draining system ensures no water leaking on roof top.
Fully Welded Top frame+ truss & Bottom frame + supports ensure product strength!

Flat Pack Container House Components List

Components	Specification	Note
Wall panel	50mm thick rock wool sandwich panel	Hot-dip galvanized double side color steel 0.3mm
Wall panel	50mm thick rock wool sandwich panel	Hot-dip galvanized double side color steel 0.3mm
Main steel Frame	Roof Frame	4 beams, 4 corner connectors, 80401.2purlin, 0.45mm steel sheet
	Bottom Frame	4 beams, 4 corner connectors, 9 square tube
	Pillar	2.0mm 210*150
Bottom frame accessory	Bottom flashing	S type
Gate	Security door	Steel Security door
Window	Window	Aluminum alloy belt anti-theft window(custom size as demands)
Roof steel	Roof tile	Top steel sheet 0.45mm
Ceiling tile	Roof tile	PVC ceiling buckle with installing accessory
Floor	Bottom floor	18mm thick Cement board
Floor	Upper laying floor	1.6mm thick pvc tile
Water downpipe	Water downpipe	∅50mm PVC downpipe
Accessories	Installin and Sealing	Screws, glass glue, layering, etc.
Insulation	Glass wool	bag packing
