Large Span Residential Steel Construction Prefabricated Structural Steel Portal Frame
Product Description:
Prefabricated Steel Structure is an effective and economical solution for industrial or commercial building projects. It is a kind of portal frame structure, which is composed of columns, beams, bracings and purlins. It is made of quality metal materials, and can be painted or galvanized for better durability and corrosion resistance. The size and length of the structure can be customized according to your specific requirements.
Portal frame structure is an ideal and cost-effective choice for industrial or commercial buildings, which offers a wide range of advantages, such as quicker construction, less material waste, better airtightness, and better seismic performance. Moreover, prefabricated steel structure is very suitable for long-span or large-span buildings, as it can provide great flexibility and stability.
Applications:
Prefabricated Steel Structure. It is featured by large span, column, beam, bracing, purlin and grade of Q235 , Q355. It is of customized length and portal frame, and the size can be customized.
Prefabricated Steel Structure is widely used in bridges, towers, workshops, warehouses and other large span steel structures. It is also suitable for large scale industrial plants, and can be used for various types of buildings with large span. It can be used to construct plants, warehouses, office buildings, gymnasiums, hangars and large span buildings in airports. It also can be used for large span exhibition halls, large span sports venues, and other large span buildings.
| Product Application |
| Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse |
| A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding! |
| An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework. |
| SPECIFICATION FOR STEEL STRUCTURE BUILDING |
| Main Steel Frame | Steel Column & Beam | 1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel |
| 2. Surface: Hot Dip Galvanized or Painted; |
| 3. Connection: All Bolts Connection; |

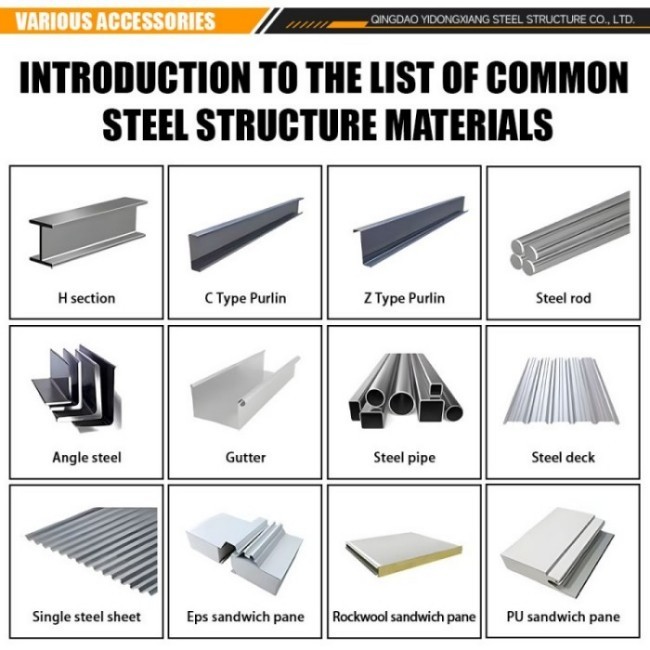

| Supporting System | Roof Purlin | C or Z Section Steel, Q235B |
| Wall Purlin | C or Z Section Steel, Q235B |
| Bracing | Steel Rod, Q235B |
| Cross Support | Steel Rod, Q235B |
| Column Support | Angle Steel; Steel Rod; Q235B |
| Angle Brace | Angle steel,Q235B |
| Tie Bar | Steel Pipe,Q235B |
| Roof & Wall System | 1. Single Colorful Corrugated Steel Sheet;
Thickness: 0.3-0.8mm |
2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU;
Thickness: 50-150mm; |
| Accessories | Door | Sliding; Rolled Up Door (Manual/Auto) |
| Window | Aluminum Alloy; PVC; |
| Downspout | PVC pipe; |
| Gutter | Galvanized Steel Sheet; Stainless Steel |
| Ventilator | Stainless Steel Turbine Ventilator |
| Skylight Belt | FRP or PC semi-transparent Skylight Belt |
| Flash | Color Steel Sheet |
| Fittings | Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc |
Technical Specifications
| Component | Specification |
| Main structure | H section steel Q345, alkyd painting (two primary coats, two finish coats) |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
| Fittings & accessories | Nails, glue etc. |
Packing & Loading
All structural components, panels, bolts, and accessories are packed to withstand ocean transportation and loaded into 40'HQ containers.
Our Advantages
| 1. Professional Design Team | We provide customized design services based on your requirements or calculate steel quantities from your existing drawings. |
| 2. Skilled Fabrication | Our advanced equipment and trained workforce follow project-specific production schedules with pre-fabrication training. |
| 3. One-Stop Service | We offer complete project solutions with extensive experience in customized steel structure projects. |
| 4. Quality Control | Dedicated QC team ensures products meet all specifications and requirements. |
| 5. After-Sales Service | Comprehensive support including maintenance services for insulation and steel components. |
The following question we need to know before making the price. Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
